螺纹规格：公制，pg，g(PG) 和NPT。
防水等级：IP68-10。
工作温度：静态-40°C至100°C，或可以承受高达120的热量°c即时。动态-20°C至80°C或可以承受高达100的热量°c即时。
产品功能:
该产品专为通风孔类型设计。此功能允许通过简单操作同时连接多条电缆到一个出口孔。它不仅大大缩短了施工时间，还降低了成本，而且还降低了插座所占用的空间。它具有高耐盐水，弱酸，醇，油，脂肪和一般溶解度的耐腐蚀性。
产品材料:
带有镍的黄铜 - 镀金A，C，F零件； E部分是UL-批准的尼龙PA66 (易燃性UL94V -2); B和D部分是NBR或EPDM橡胶，可以定制橡胶材料。

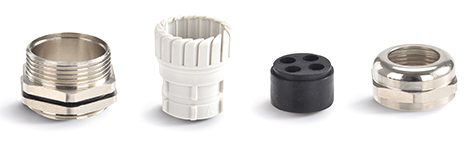

分解图：
技术参数：

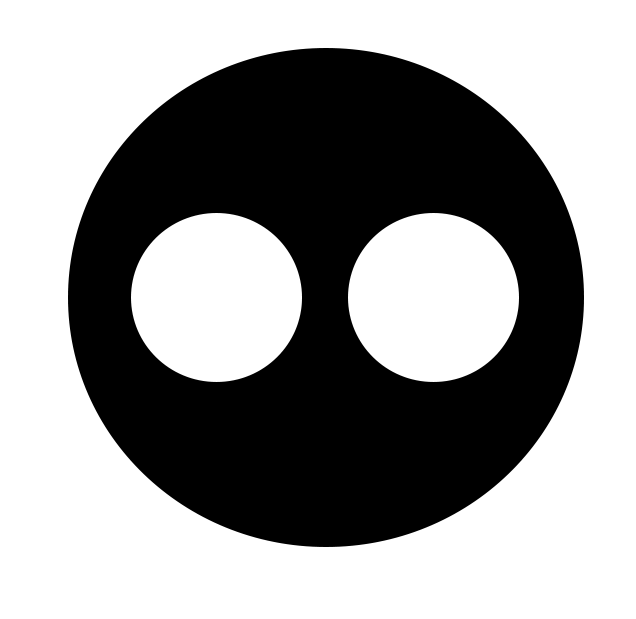

型 | 规格 | 螺丝杆 规格 | 电缆范围 (毫米) | 线程 直径 (毫米) | 螺纹长度 (毫米) | 扳手直径 (毫米) |
| M12-H2 | 米12*1.5 | 3-1.2 | 12 | 7 | 14 |
M16-H2 | 米16*1.5 | 4-1.6 | 16 | 8 | 18 | |
M18-H2 | M18*1.5 | 3.5-2 | 18 | 8 | 20 | |
M20A-H2 | 米20*1.5 | 5.3-1.5 | 20 | 8 | 22 | |
M20B-H2 | 米20*1.5 | 3.5-2 | 20 | 8 | 22 | |
M22-H2 | 米22*1.5 | 6-2.5 | 22 | 8 | 24 | |
M25-H2 | M25*1.5 | 8.7-4 | 25 | 9 | 30 | |
M32-H2 | M32*1.5 | 10-5 | 32 | 9 | 35 | |
PG7-H2 | PG7 | 3-1.2 | 12.5 | 8 | 14 | |
PG9-H2 | PG9 | 4-1.6 | 15.2 | 8 | 17 | |
PG11-H2 | PG11 | 3.5-2 | 18.6 | 8 | 20 | |
PG13.5-H2 | PG13.5 | 5.3-1.5 | 20.4 | 8 | 22 | |
PG16-H2 | PG16 | 6-2.5 | 22.5 | 8 | 24 | |
PG21-H2 | PG21 | 8.7-4.5 | 28.3 | 9 | 30 | |
PG29-H2 | PG29 | 10-5 | 37 | 10 | 40 | |
G1/4-H2 | G1/4 | 3-1.2 | 13.1 | 7 | 14 | |
G3/8-H2 | G3/8 | 4-1.6 | 16.6 | 8 | 18 | |
G1/2A-H2 | G1/2 | 3.5-2 | 20.9 | 8 | 22 | |
G1/2B-H2 | G1/2 | 5.3-1.5 | 20.9 | 8 | 22 | |
G3/4-H2 | G3/4 | 8.7-4.5 | 26.4 | 9 | 30 | |
G1-H2 | G1 | 10-5 | 33.2 | 10 | 35 | |
N3/8-H2 | NPT3/8 | 4-1.6 | 17 | 8 | 18 | |
N1/2A-H2 | NPT1/2 | 3.5-2 | 21.2 | 8 | 22 | |
N1/2B-H2 | NPT1/2 | 5.3-1.5 | 21.2 | 8 | 22 | |
N3/4-H2 | NPT3/4 | 8.7-4.5 | 26.5 | 9 | 30 | |
N1-H2 | NPT1 | 10-5 | 33.2 | 10 | 35 | |
型 | 规格 | 螺丝杆 规格 | 电缆范围 (毫米) | 线程 直径 (毫米) | 螺纹长度 (毫米) | 扳手直径 (毫米) |

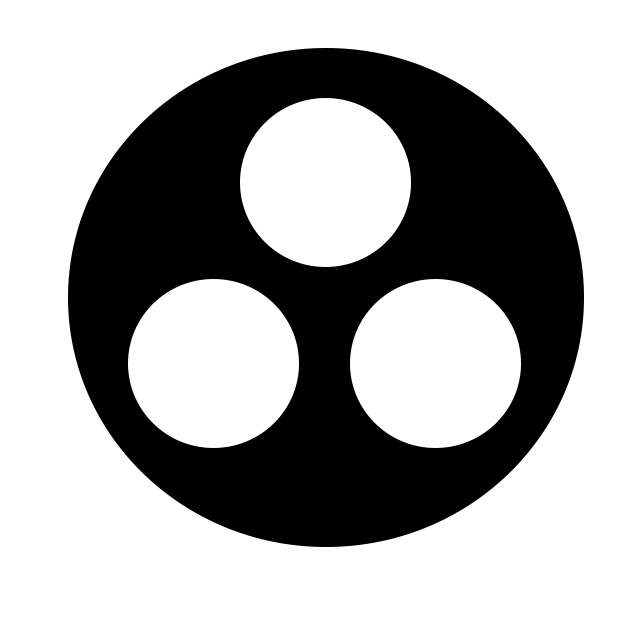

| M12-H3 | 米12*1.5 | 2.6-1.2 | 12 | 7 | 14 |
M16-H3 | 米16*1.5 | 2.6-1.2 | 16 | 8 | 18 | |
M18-H3 | M18*1.5 | 4-1.6 | 18 | 8 | 20 | |
M20A-H3 | 米20*1.5 | 5-2 | 20 | 8 | 22 | |
M20B-H3 | 米20*1.5 | 3.5-1.5 | 20 | 8 | 22 | |
M22-H3 | 米22*1.5 | 3.5-1.5 | 22 | 8 | 24 | |
M25-H3 | M25*1.5 | 8-4 | 25 | 9 | 30 | |
M32-H3 | M32*1.5 | 10-5 | 32 | 9 | 35 | |
PG7-H3 | PG7 | 2.6-1.2 | 12.5 | 8 | 14 | |
PG9-H3 | PG9 | 2.6-1.2 | 15.2 | 8 | 17 | |
PG11-H3 | PG11 | 4-1.6 | 18.6 | 8 | 20 | |
PG13.5-H3 | PG13.5 | 5-2 | 20.4 | 8 | 22 | |
PG16-H3 | PG16 | 3.5-1.5 | 22.5 | 8 | 24 | |
PG21-H3 | PG21 | 5-2 | 28.3 | 9 | 30 | |
PG29-H3 | PG29 | 10-5 | 37 | 10 | 40 | |
G1/4-H3 | G1/4 | 2.6-1.2 | 13.1 | 7 | 14 | |
G3/8-H3 | G3/8 | 4-1.6 | 16.6 | 8 | 18 | |
G1/2A-H3 | G1/2 | 5-2 | 20.9 | 8 | 22 | |
G1/2B-H3 | G1/2 | 3.5-1.5 | 20.9 | 8 | 22 | |
G3/4-H3 | G3/4 | 8-4 | 26.4 | 9 | 30 | |
G1-H3 | G1 | 10-5 | 33.2 | 10 | 35 | |
N3/8-H3 | NPT3/8 | 4-1.6 | 17 | 8 | 18 | |
N1/2A-H3 | NPT1/2 | 3.5-1.5 | 21.2 | 8 | 22 | |
N1/2B-H3 | NPT1/2 | 5-2 | 21.2 | 8 | 22 | |
N3/4-H3 | NPT3/4 | 8-4 | 26.5 | 9 | 30 | |
N1-H3 | NPT1 | 10-5 | 33.2 | 10 | 35 | |
型 | 规格 | 螺丝杆 规格 | 电缆范围 (毫米) | 线程 直径 (毫米) | 螺纹长度 (毫米) | 扳手直径 (毫米) |

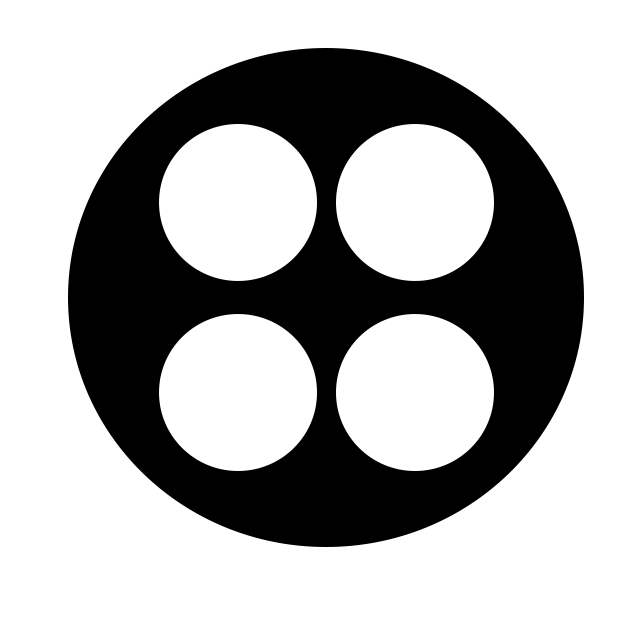

| M12-H4 | 米12*1.5 | 2.3-1 | 12 | 7 | 14 |
M16-H4 | 米16*1.5 | 2.3-1 | 16 | 8 | 18 | |
M18-H4 | M18*1.5 | 3-1.2 | 18 | 8 | 20 | |
M20A-H4 | 米20*1.5 | 4.2-1.7 | 20 | 8 | 22 | |
M20B-H4 | 米20*1.5 | 3.5-1.5 | 20 | 8 | 22 | |
M22-H4 | 米22*1.5 | 4.5-2 | 22 | 8 | 24 | |
M25-H4 | M25*1.5 | 5-2 | 25 | 9 | 30 | |
M32-H4 | M32*1.5 | 9-4.5 | 32 | 9 | 35 | |
PG7-H4 | PG7 | 2.3-1 | 12.5 | 8 | 14 | |
PG9-H4 | PG9 | 2.3-1 | 15.2 | 8 | 17 | |
PG11-H4 | PG11 | 3-1.2 | 18.6 | 8 | 20 | |
PG13.5-H4 | PG13.5 | 4.2-1.7 | 20.4 | 8 | 22 | |
PG16-H4 | PG16 | 4.5-2 | 22.5 | 8 | 24 | |
PG21-H4 | PG21 | 7-3.5 | 28.3 | 9 | 30 | |
PG29-H4 | PG29 | 9-4.5 | 37 | 10 | 40 | |
G1/4-H4 | G1/4 | 2.3-1 | 13.1 | 7 | 14 | |
G3/8-H4 | G3/8 | 3-1.2 | 16.6 | 8 | 18 | |
G1/2A-H4 | G1/2 | 3.5-1.5 | 20.9 | 8 | 22 | |
G1/2B-H4 | G1/2 | 4.5-2 | 20.9 | 8 | 22 | |
G3/4-H4 | G3/4 | 7-3.5 | 26.4 | 9 | 30 | |
G1-H4 | G1 | 9-4.5 | 33.2 | 10 | 35 | |
N3/8-H4 | NPT3/8 | 2.3-1 | 17 | 8 | 18 | |
N1/2A-H4 | NPT1/2 | 3.5-1.5 | 21.2 | 8 | 22 | |
N1/2B-H4 | NPT1/2 | 4.5-2 | 21.2 | 8 | 22 | |
N3/4-H4 | NPT3/4 | 7-3.5 | 26.5 | 9 | 30 | |
N1-H4 | NPT1 | 9-4.5 | 33.2 | 10 | 35 | |
型 | 规格 | 螺丝杆 规格 | 电缆范围 (毫米) | 线程 直径 (毫米) | 螺纹长度 (毫米) | 扳手直径 (毫米) |

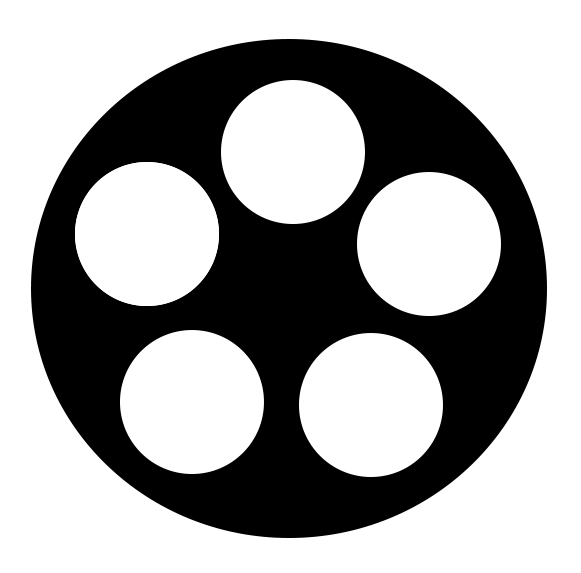

| M16-H5 | 米16*1.5 | 2.5-1 | 16 | 8 | 18 |
M20A-H5 | 米20*1.5 | 3-1.2 | 20 | 8 | 22 | |
M20B-H5 | 米20*1.5 | 4.2-1.7 | 20 | 8 | 22 | |
M25A-H5 | M25*1.5 | 3.5-1.5 | 25 | 9 | 30 | |
M25B-H5 | M25*1.5 | 6-3 | 25 | 9 | 30 | |
M32-H5 | M32*1.5 | 8-4 | 32 | 9 | 35 | |
PG9-H5 | PG9 | 2.5-1 | 15.2 | 8 | 17 | |
PG13.5A-H5 | PG13.5 | 3-1.2 | 20.4 | 8 | 22 | |
PG13.5B-H5 | PG13.5 | 4.2-1.7 | 20.4 | 8 | 22 | |
PG21A-H5 | PG21 | 3.5-1.5 | 28.3 | 9 | 30 | |
PG21B-H5 | PG21 | 6-3 | 28.3 | 9 | 30 | |
PG29-H5 | PG29 | 8-4 | 37 | 10 | 40 | |
G3/8-H5 | G3/8 | 2.5-1 | 16.6 | 8 | 18 | |
G1/2A-H5 | G1/2 | 3-1.2 | 20.9 | 8 | 22 | |
G1/2B-H5 | G1/2 | 4.2-17 | 20.9 | 8 | 22 | |
G3/4-H5 | G3/4 | 6-3 | 26.4 | 9 | 30 | |
G1-H5 | G1 | 8-4 | 33.2 | 10 | 35 | |
N3/8-H5 | NPT3/8 | 2.5-1 | 17 | 8 | 18 | |
N1/2A-H5 | NPT1/2 | 3-1.2 | 21.2 | 8 | 22 | |
N1/2B-H5 | NPT1/2 | 4.2-1.7 | 21.2 | 8 | 22 | |
N3/4-H5 | NPT3/4 | 6-3 | 26.5 | 9 | 30 | |
N1-H5 | NPT1 | 8-4 | 33.2 | 10 | 35 | |
型 | 规格 | 螺丝杆 规格 | 电缆范围 (毫米) | 线程 直径 (毫米) | 螺纹长度 (毫米) | 扳手直径 (毫米) |
| M16-H6 | 米16*1.5 | 2-1 | 16 | 8 | 18 |
M20-H6 | 米20*1.5 | 3-1.2 | 20 | 8 | 22 | |
M25A-H6 | M25*1.5 | 3.5-1.5 | 25 | 9 | 30 | |
M25B-H6 | M25*1.5 | 5.3-2.4 | 25 | 9 | 30 | |
M32-H6 | M32*1.5 | 7-3.5 | 32 | 9 | 35 | |
PG9-H6 | PG9 | 2-1 | 15.2 | 8 | 17 | |
PG13.5-H6 | PG13.5 | 3-1.2 | 20.4 | 8 | 22 | |
PG21A-H6 | PG21 | 3.5-1.5 | 28.3 | 9 | 30 | |
PG21B-H6 | PG21 | 5.3-2.4 | 28.3 | 9 | 30 | |
PG29-H6 | PG29 | 7-3.5 | 37 | 10 | 40 | |
G3/8-H6 | G3/8 | 2-1 | 16.6 | 8 | 18 | |
G1/2-H6 | G1/2 | 3-1.2 | 20.9 | 8 | 22 | |
G3/4A-H6 | G3/4 | 3.5-1.5 | 26.4 | 9 | 30 | |
G3/4B-H6 | G3/4 | 5.3-2.4 | 26.4 | 9 | 30 | |
G1-H6 | G1 | 7-3.5 | 33.2 | 10 | 35 | |
N3/8-H6 | NPT3/8 | 2-1 | 17 | 8 | 18 | |
N1/2A-H6 | NPT1/2 | 3-1.2 | 21.2 | 8 | 22 | |
N3/4-H6 | NPT3/4 | 3.5-1.5 | 26.5 | 8 | 22 | |
N3/4-H6 | NPT3/4 | 5.3-2.4 | 26.5 | 9 | 30 | |
N1-H6 | NPT1 | 7-3.5 | 33.2 | 10 | 35 | |
型 | 规格 | 螺丝杆 规格 | 电缆范围 (毫米) | 线程 直径 (毫米) | 螺纹长度 (毫米) | 扳手直径 (毫米) |
| M20-H7 | 米20*1.5 | 3-1.2 | 20 | 8 | 22 |
M25-H7 | M25*1.5 | 3.5-1.5 | 25 | 9 | 30 | |
M25-H7 | M25*1.5 | 6-3 | 25 | 9 | 35 | |
M32-H6 | M32*1.5 | 7-3.5 | 32 | 9 | 35 | |
PG13.5-H7 | PG13.5 | 3-1.2 | 20.4 | 8 | 22 | |
PG21-H7 | PG21 | 3.5-1.5 | 28.3 | 9 | 30 | |
PG29-H7 | PG29 | 6-3 | 37 | 10 | 40 | |
G1/2-H7 | G1/2 | 3-1.2 | 20.9 | 8 | 22 | |
G3/4-H7 | G3/4 | 3.5-1.5 | 26.4 | 9 | 30 | |
G1-H7 | G1 | 6-3 | 33.2 | 10 | 35 | |
N1/2-H7 | NPT1/2 | 3-1.2 | 21.2 | 8 | 22 | |
N3/4-H7 | NPT3/4 | 3.5-1.5 | 26.5 | 8 | 30 | |
N1-H7 | NPT1 | 6-3 | 33.2 | 10 | 35 | |
型 | 规格 | 螺丝杆 规格 | 电缆范围 (毫米) | 线程 直径 (毫米) | 螺纹长度 (毫米) | 扳手直径 (毫米) |
| M20-H8 | 米20*1.5 | 2.8-1 | 20 | 8 | 22 |
M25-H8 | M25*1.5 | 3.5-1.5 | 25 | 9 | 30 | |
G1/2-H8 | G1/2 | 2.8-1 | 20.9 | 8 | 22 | |
G3/4-H8 | G3/4 | 3.5-1.5 | 26.4 | 9 | 30 | |
PG13.5-H8 | PG13.5 | 2.8-1 | 20.4 | 8 | 22 | |
PG21-H8 | PG21 | 3.5-1.5 | 28.3 | 9 | 30 | |
N1/2-H8 | NPT1/2 | 2.8-1 | 21.2 | 8 | 22 | |
N3/4-H8 | NPT3/4 | 3.5-1.5 | 26.5 | 8 | 30 |
